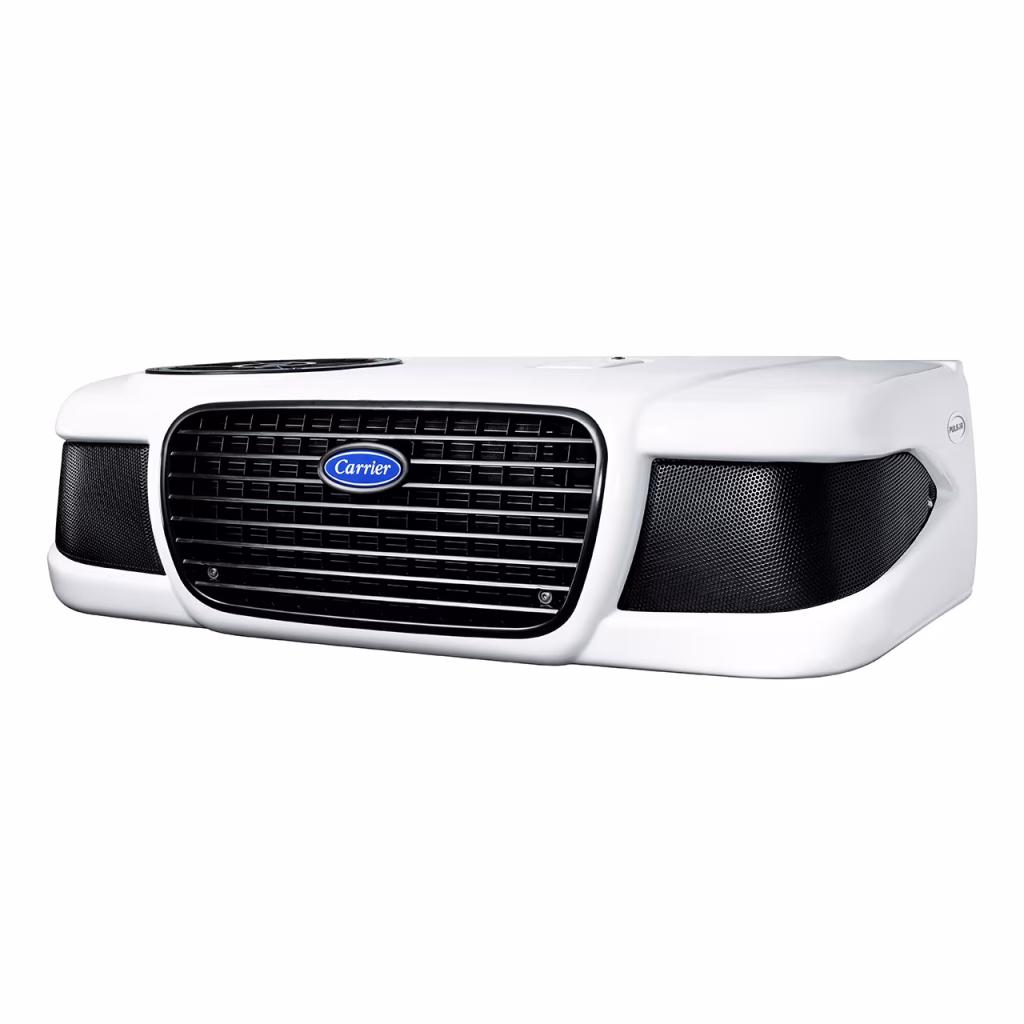

Pulsor 500

Constant Cold throughout the day
Benefits:
  • arrow Cold Chain Revolution
  • arrow Low cost of ownership
  • arrow Ensuring Sustainability
  • arrow High capacity at idle speed
  • arrow Unequaled Technology

Maintaining constant cold throughout your intense delivery schedule is an everyday challenge. When choosing a refrigeration unit, you need to be confident it will help you deliver goods to customers in a perfect state, everytime.

HIGH CAPACITY NEED…
Frequent stops, multiple door openings, traffic congestion, multi-temperature goods and sensitive products – it’s hard to maintain the cold chain. To keep the temperature just right, your refrigeration unit needs to provide quick pull-down and high capacity at all times.

…EVEN AT IDLE SPEED
Conventional refrigeration units depend on engine speed and reach optimum capacity at 2400 RPM. But during city deliveries, your van is operating 90% of the time at low speed (under 2400 RPM)*. This compromises refrigeration capacity and makes it even harder to maintain the right temperature for your goods.
* In a standard urban delivery cycle

OUR ANSWER: The revolutionary Pulsor range. Benefiting from the E-Drive technology associated with an inverter and hermetic variable compressor, Pulsor ensures constant cold throughout the day.

Cold Chain Revolution
Low cost of ownership
Ensuring Sustainability
High capacity at idle speed
Unequaled Technology

Benefits:
  • arrow Cold Chain Revolution
  • arrow Low cost of ownership
  • arrow Ensuring Sustainability
  • arrow High capacity at idle speed
  • arrow Unequaled Technology

Refrigeration Capacity

(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

Capacity on road at 2400rpm 0°C (W) 3 930
Capacity on road at 2400 rpm -20°C (W) 2 165
Capacity on road at 1000 rpm 0°C (W) 3 930
Capacity on road at 1000 rpm -20°C (W) 2 165
Standby capacity* (W) 3 985
Standby capacity** (W) 2 180

Heating Capacity

Heating System 3 000
Standby (W) 3 000

Airflow

(High speed engine operation)

(AMCA 21085) m3/hr 1 490

Weight

Road and standby condenser 130 kg

Compressor

Model BS330/MS330
Displacement 32,7 cm3
n° of cylinders

Electrical Stand by Motor

Voltage / Phase / Frequency 230/1/50-60 Hz

400/3/50-60 Hz

Rating 3 340 (W)

Refrigerant

Type R-404A
Charge 1,8 kg

Sound Pressure

High speed 57 dBA

Unit

Condenser dimensions (D x W x H) 579 x 1124 x 353 mm

*Stand by capacities are given for 400 VAC version

**Stand by capacities are linked to voltage version (400 VAC or 230 VAC)
