Maintaining constant cold throughout your intense delivery schedule is an everyday challenge. When choosing a refrigeration unit, you need to be confident it will help you deliver goods to customers in a perfect state, everytime.
Frequent stops, multiple door openings, traffic congestion, multi-temperature goods and sensitive products – it’s hard to maintain the cold chain. To keep the temperature just right, your refrigeration unit needs to provide quick pull-down and high capacity at all times.
Conventional refrigeration units depend on engine speed and reach optimum capacity at 2400 RPM. But during city deliveries, your van is operating 90% of the time at low speed (under 2400 RPM)*. This compromises refrigeration capacity and makes it even harder to maintain the right temperature for your goods.
* In a standard urban delivery cycle

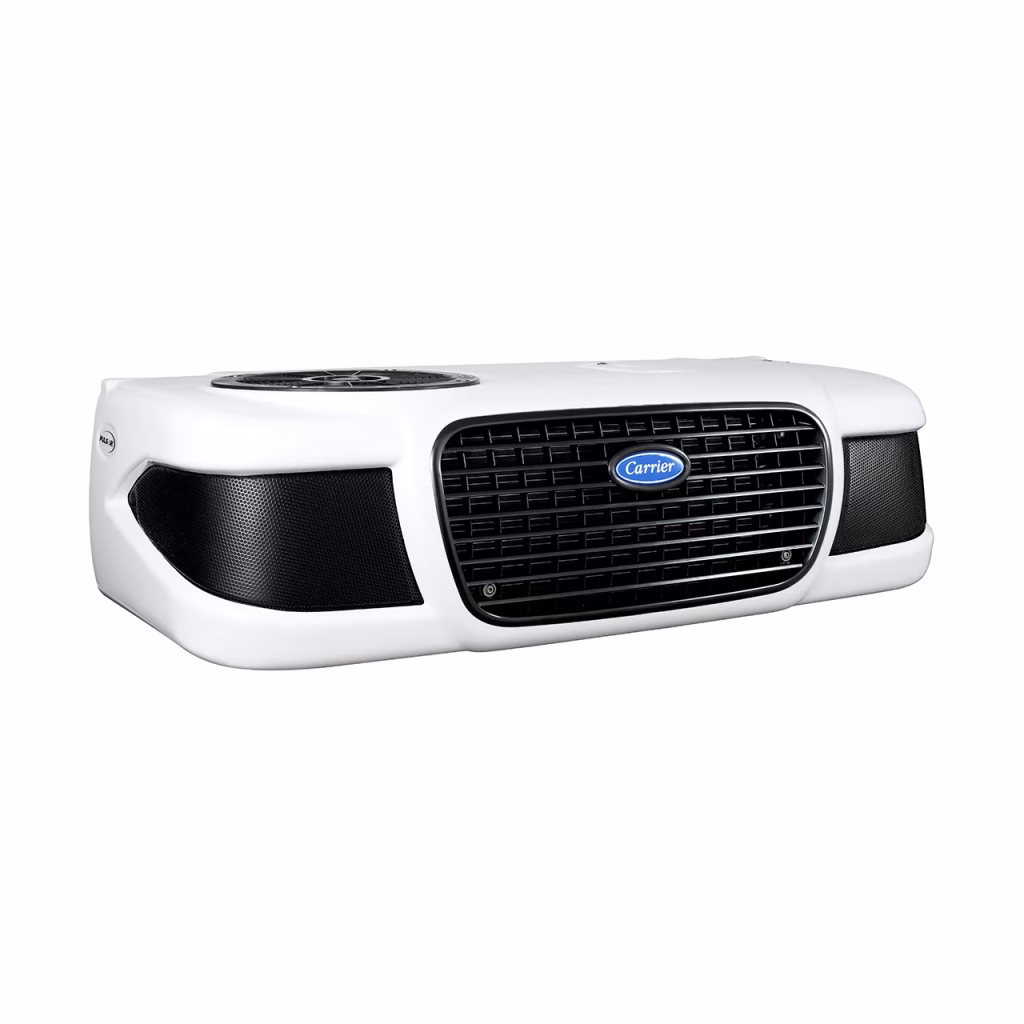

OUR ANSWER: The revolutionary Pulsor range. Benefiting from the E-Drive technology associated with an inverter and hermetic variable compressor, Pulsor ensures constant cold throughout the day.
Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)
| MCL 1100 | |
| Capacity on road at 2400rpm 0°C (W) | 3 575 |
| Capacity on road at 2400rpm -20°C (W) | 1 930 |
| Capacity on road at 1000rpm 0°C (W) | 3 420 |
| Capacity on road at 1000rpm -20°C (W) | 1 930 |
| Standby capacity* (W) | 3 615 |
| Standby capacity** (W) | 1 920 |
Heating Capacity
| Heating System | 3 000 |
| Standby (W) | 3 000 |
Airflow
(High speed engine operation)
| (AMCA 21085) m3/hr | 1 580 |
Weight
| Road and standby condenser | 91 kg |
| Evaporator | 30 kg |
Compressor
| Model | BS330/MS330 |
| Displacement | 32,7 cm3 |
| n° of cylinders |
Electrical Stand by Motor
| Voltage / Phase / Frequency | 230/1/50-60 Hz
400/3/50-60 Hz |
| Rating | 5 250 W |
Refrigerant
| Type | R-404A |
| Charge | 1,8 kg |
Sound Pressure
| High speed | 57 dBA |
Unit
| Condenser dimensions (D x W x H) | 577 x 1124 x 235 mm |
*Stand by capacities are given for 400 VAC version
**Stand by capacities are linked to voltage version (400 VAC or 230 VAC)
