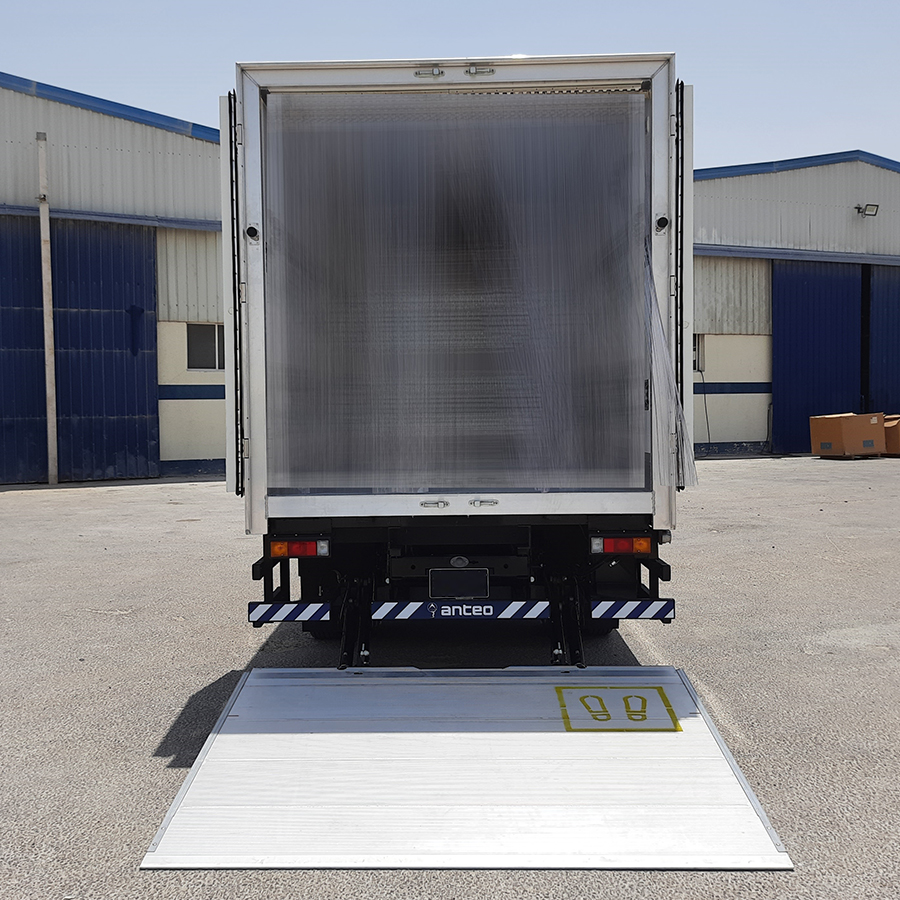

The 5 cylinders F3 CL 15 are very strong lifts, with very high performances for intensive usage.
It is ideal for the most demanding applications in the regular transport business, such as supermarket and food distribution.
The 5 cylinders F3 CL 15 are extremely versatile lifts suitable for commercial vehicles up to heavy trucks, trailers and semi-trailers.
Inside body remote control;Radio remote control;Foot operated controls on platform;Blinking lights on platform;Roll stop;Platform lock handle;Body seal kit.| Specification | Details |
|---|---|
| Platform | Aluminium |
| Platform depth | F3 CL 10-15 from 1600 to 2200 mm
|
| Lift cylinders | 2 |
| Tilt cylinders | 2 |
| Autotilt at ground | hydraulic (with memory feature) |
| Platform opening | F3 CL 10 gravity opening |
| Power supply | 12 or 24 V |
| Low maint. bushes | greasable |
| Frame color | Black KTL plus and powder paint |
| Weight | from 205 Kg |
| Mod. | Load Capacity (600 mm load centre) | Weight* (Kg) | Floor to ground (max) | Floor to bottom of chassis mounting space (min) | Lift arm width (mm) | W105 | W123 | W125 | W152 |
|---|---|---|---|---|---|---|---|---|---|
| F3 CL 15 C * | 1500 Kg | 290 | 1115 | 300 | 500 | 555 | 1050 | —– | —– |
| F3 CL 15 H * | 1500 Kg | 305 | 1210 | 345 | 560 | 640 | 1050 | —– | —– |
| F3 CL 15 HS * | 1500 Kg | 320 | 1385 | 405 | 680 | 735 | 1050 | —– | —– |
